Architectural Documentation + Details

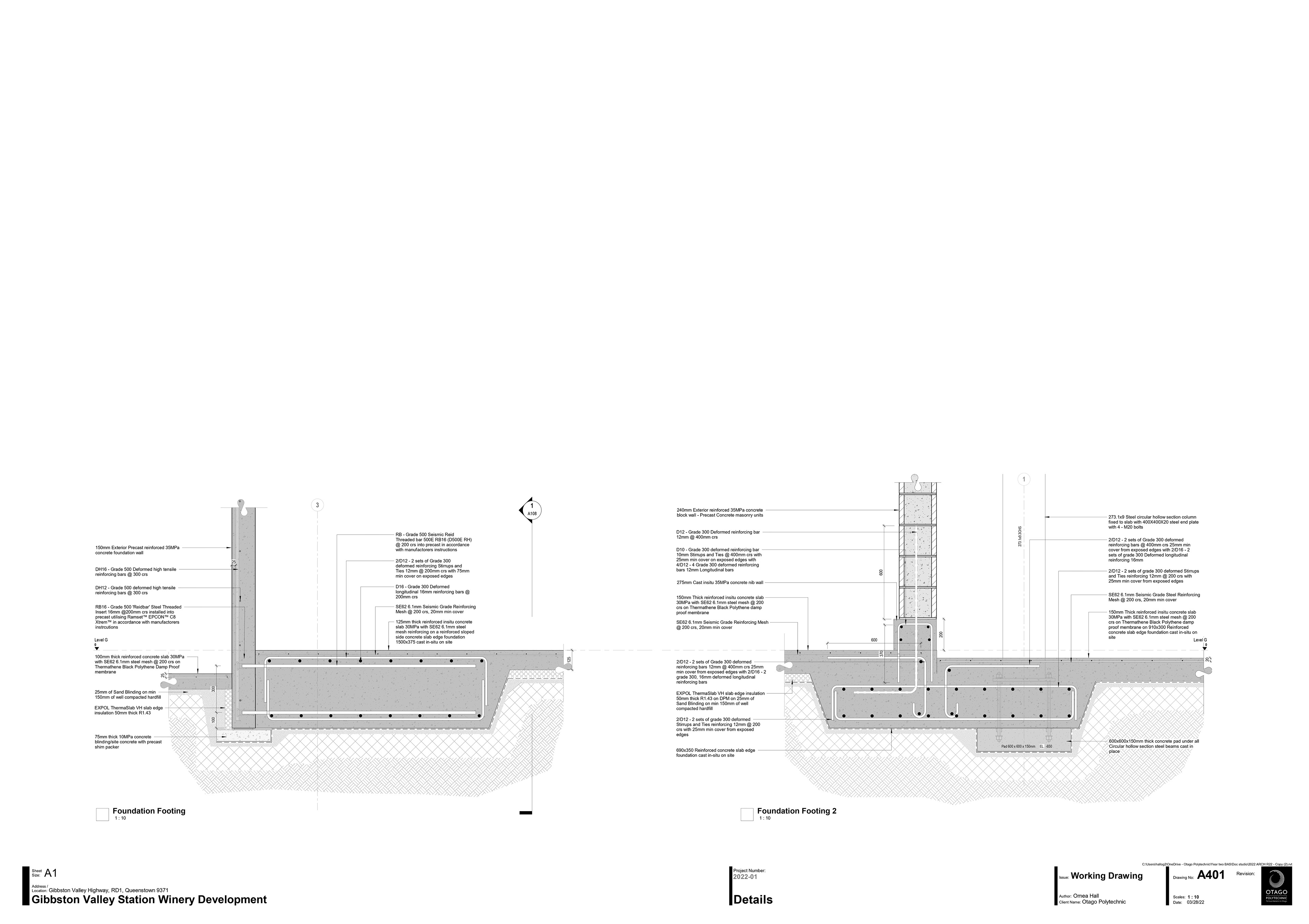

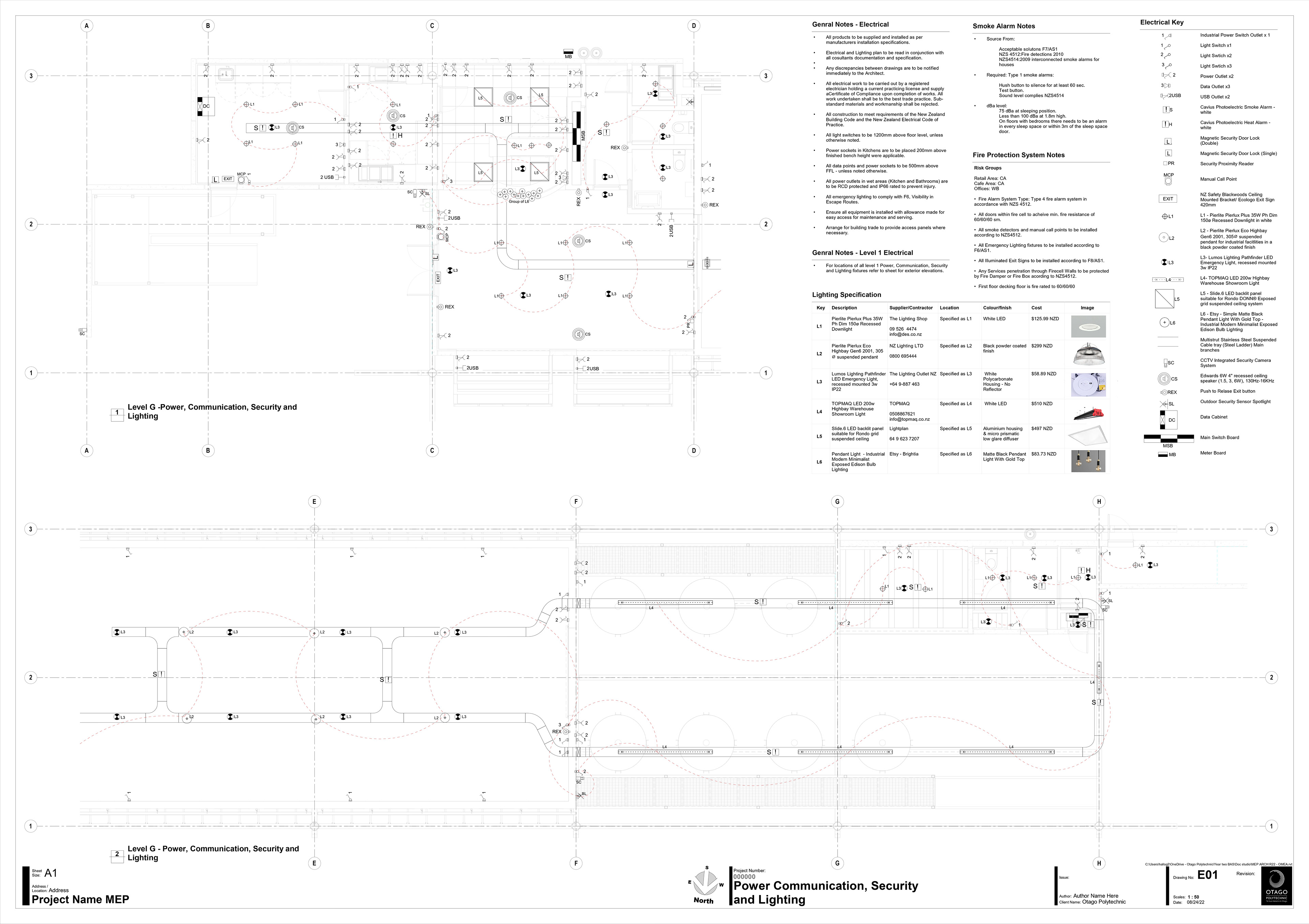

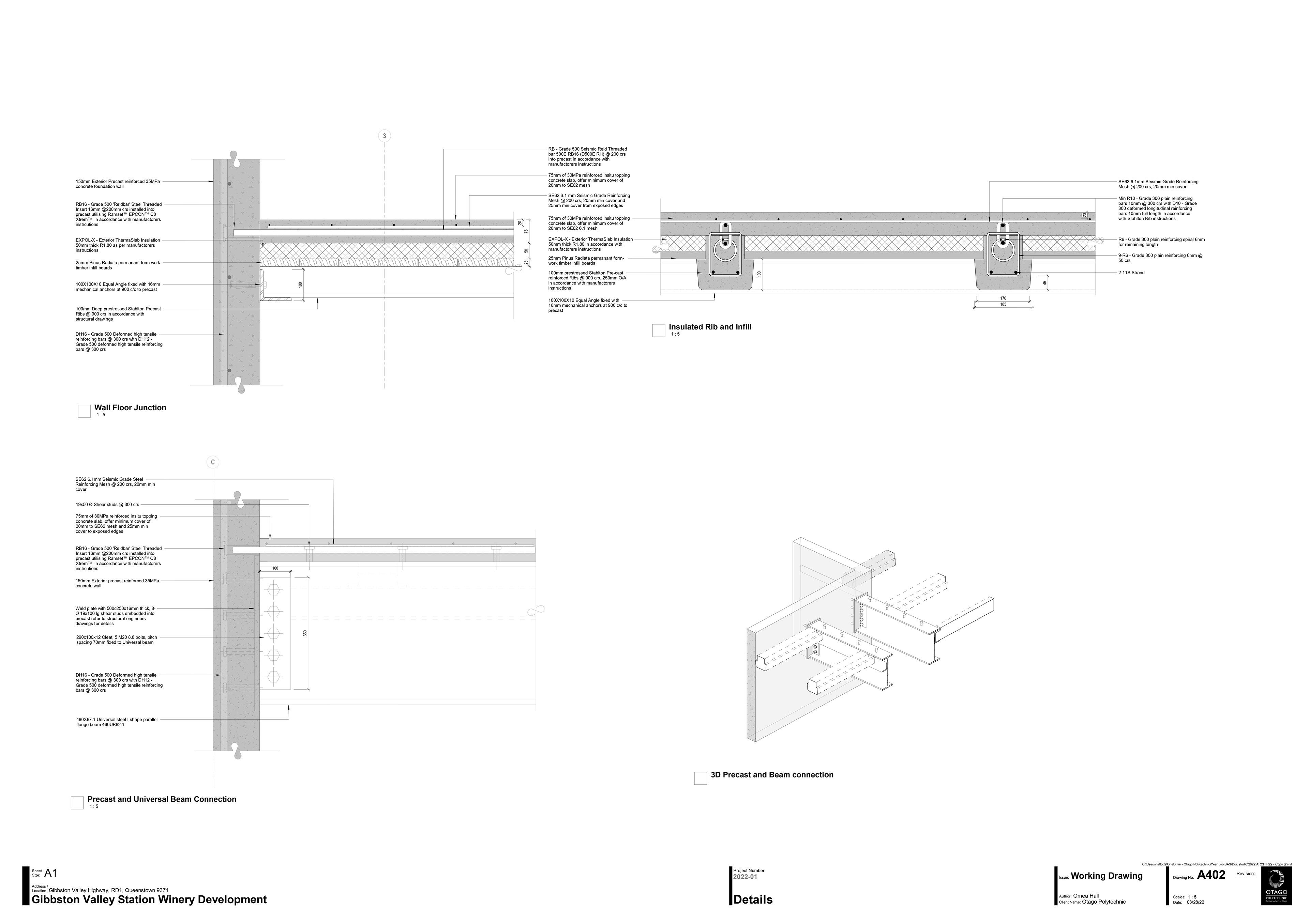

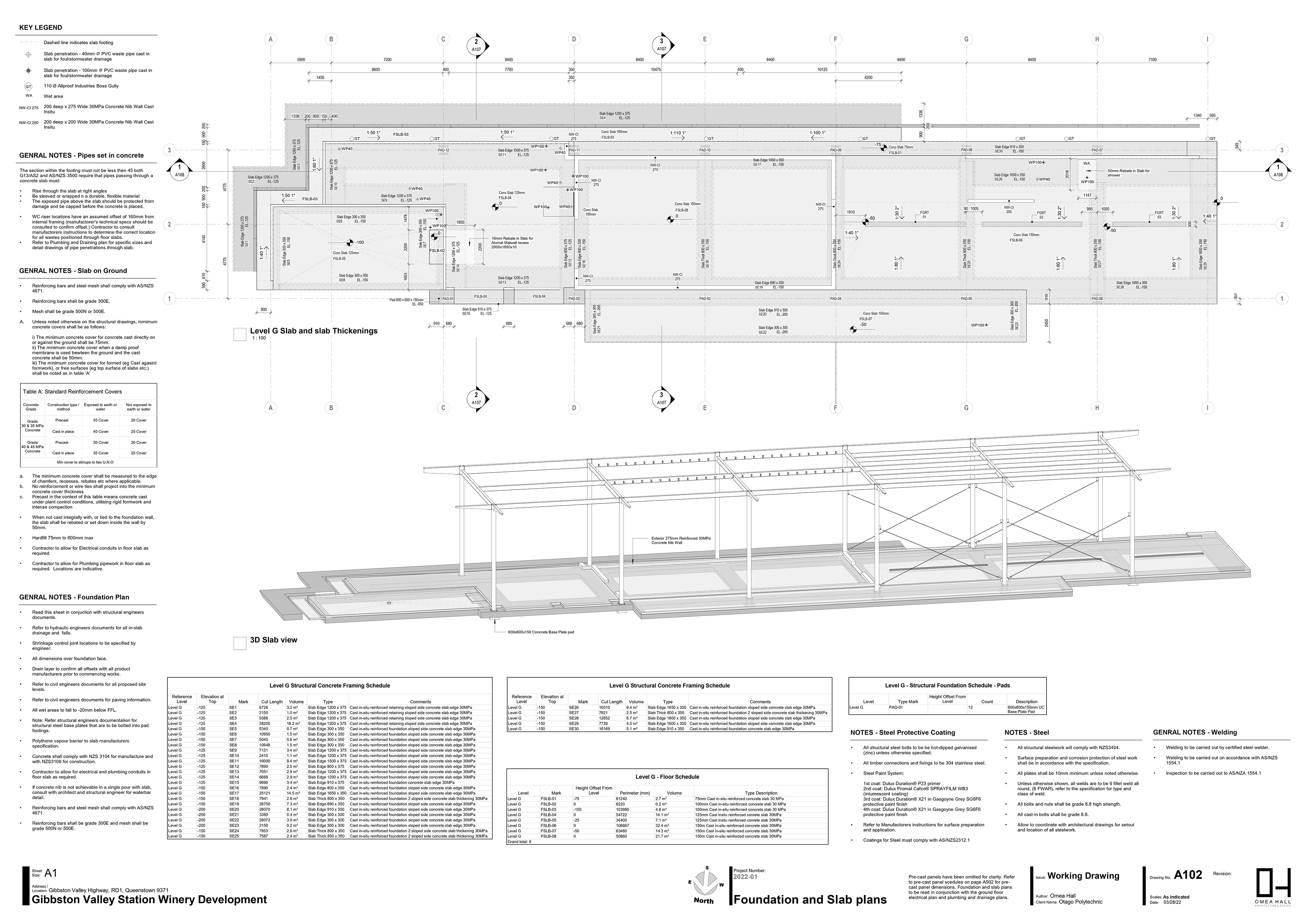

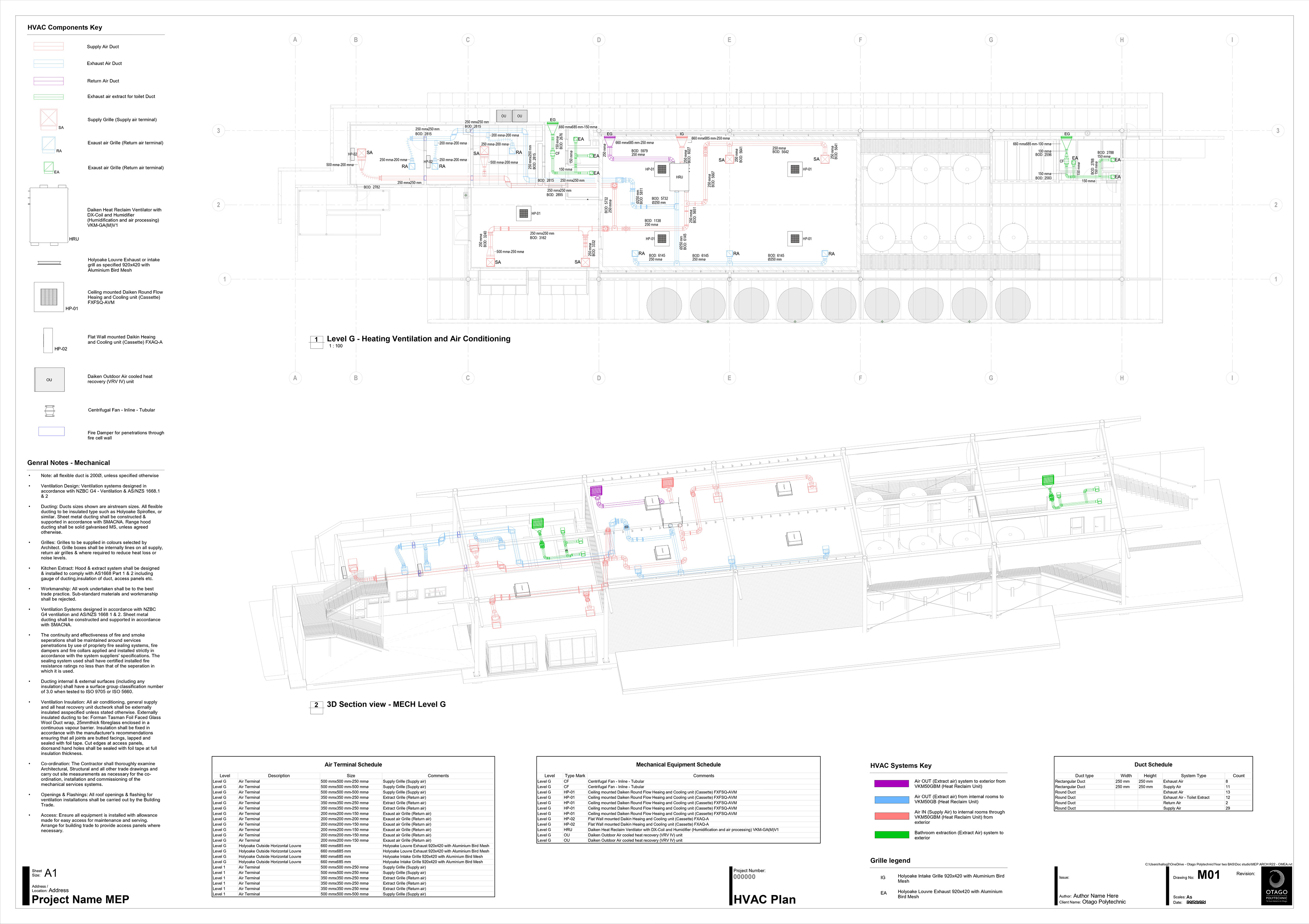

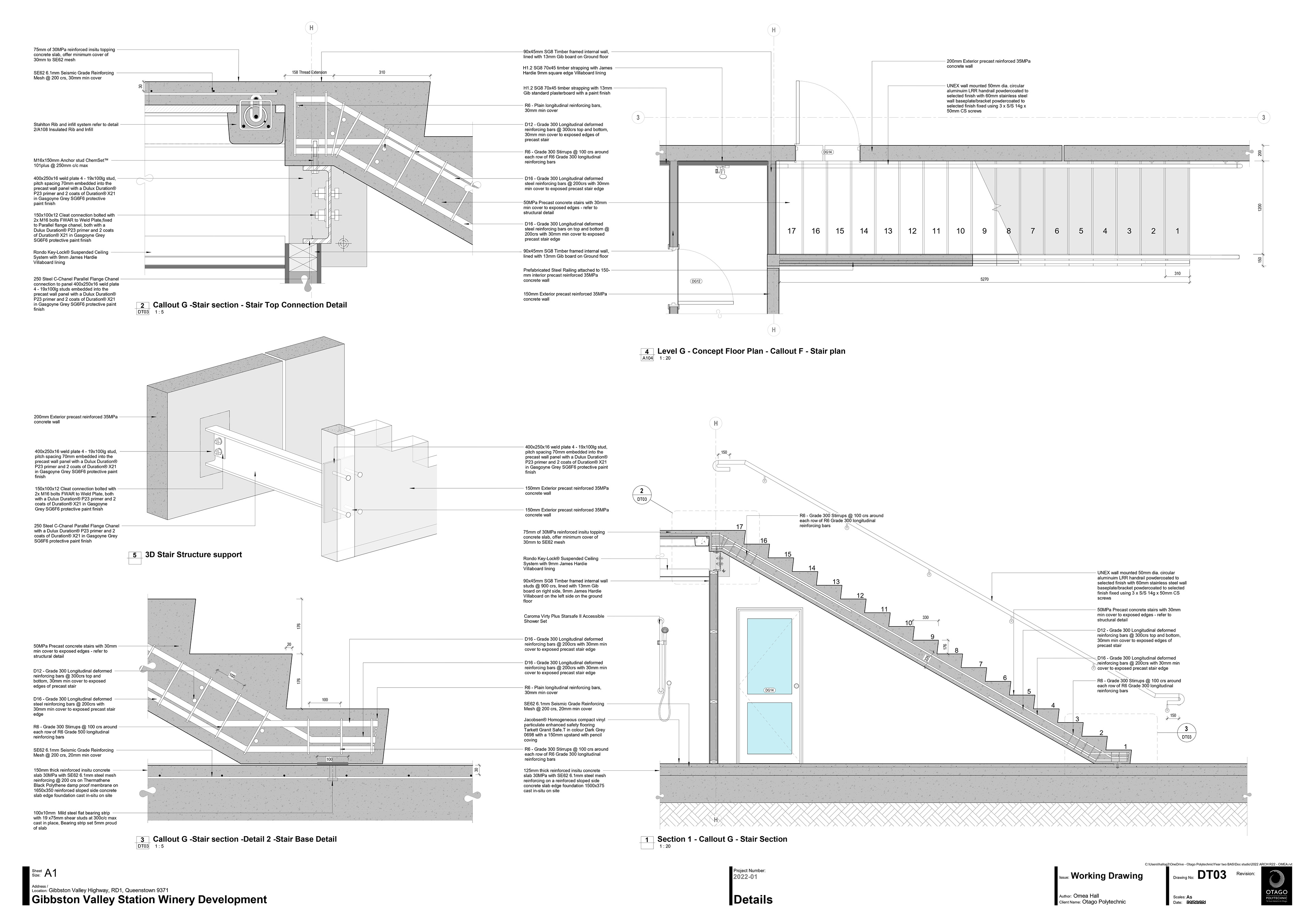

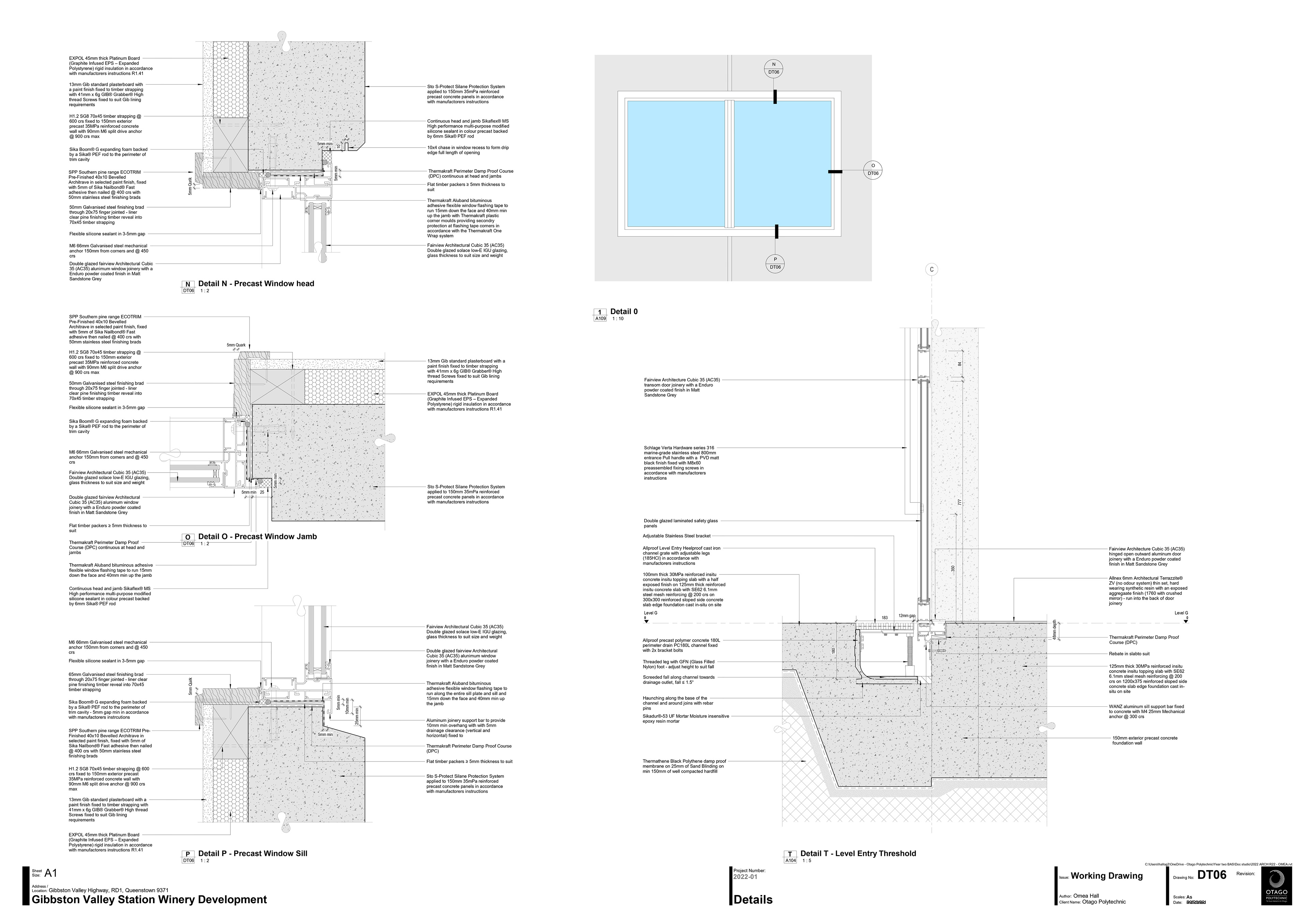

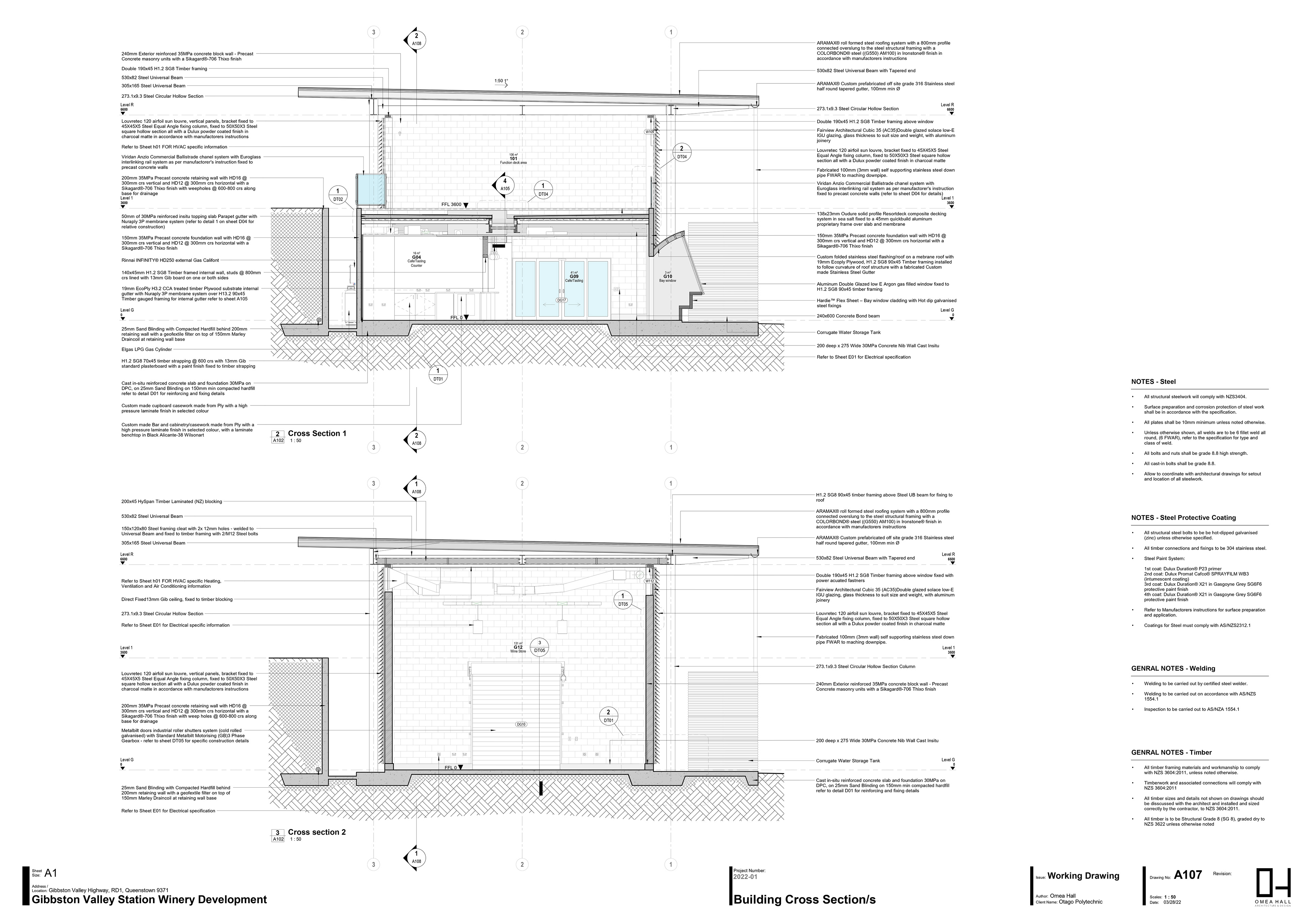

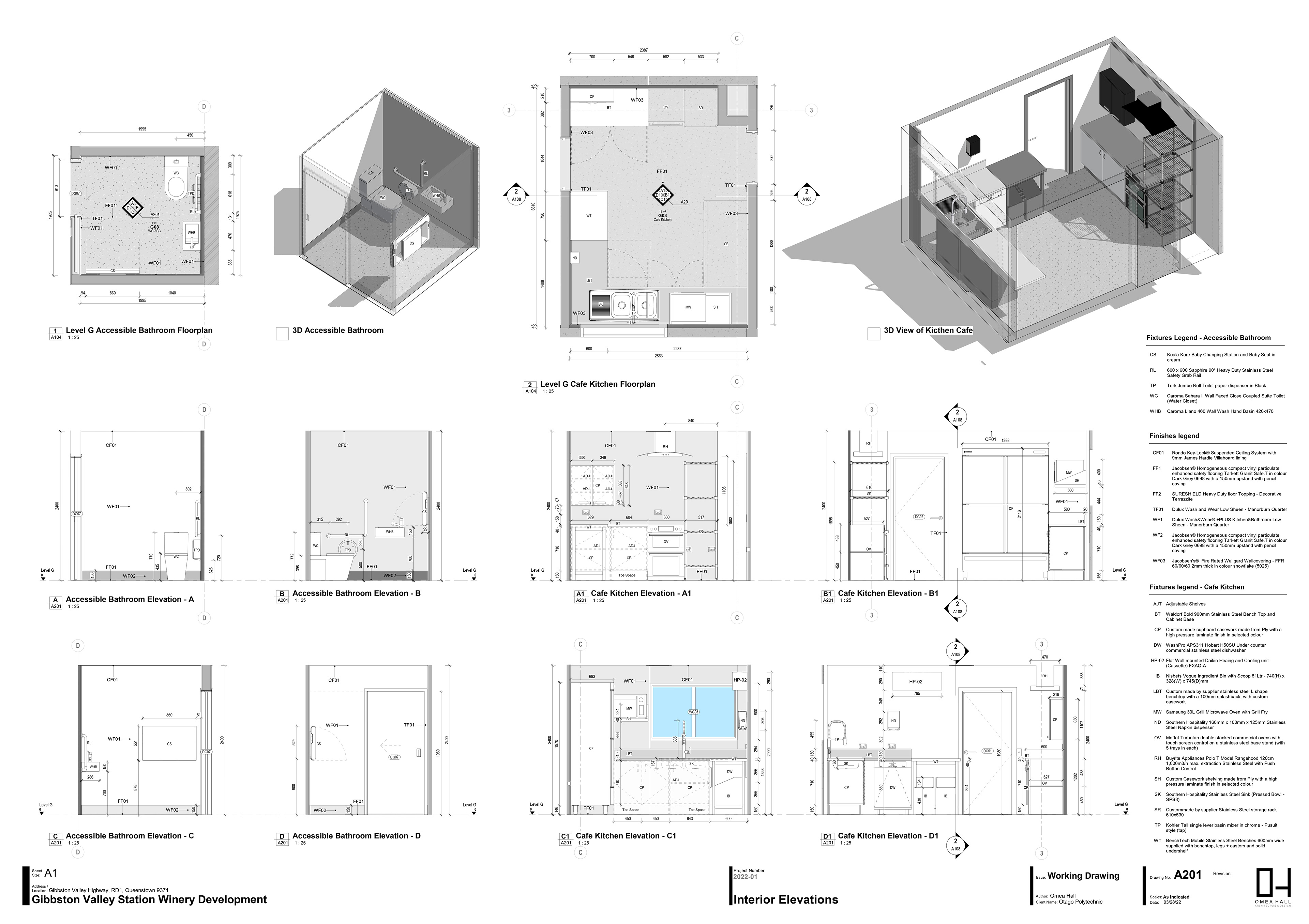

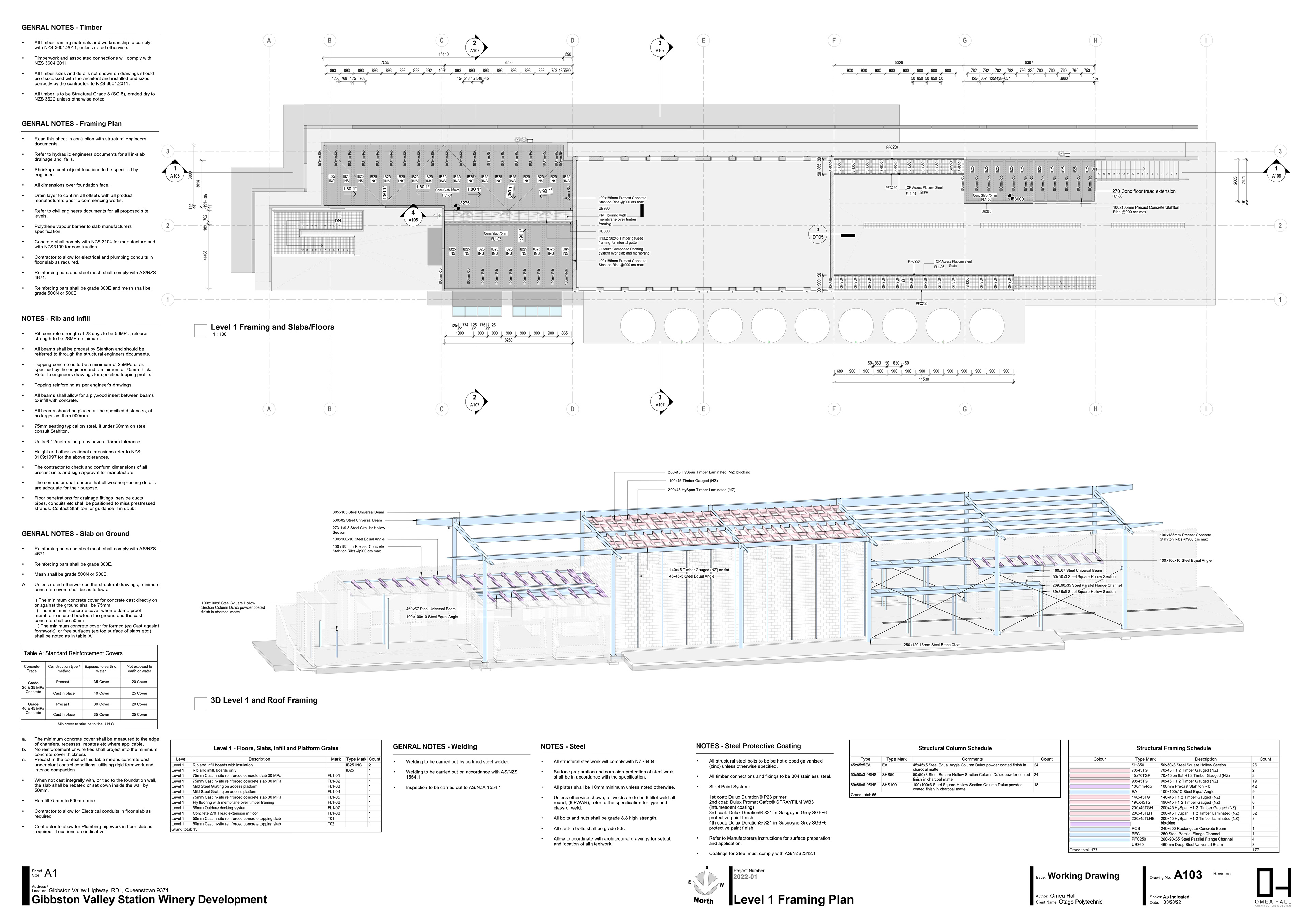

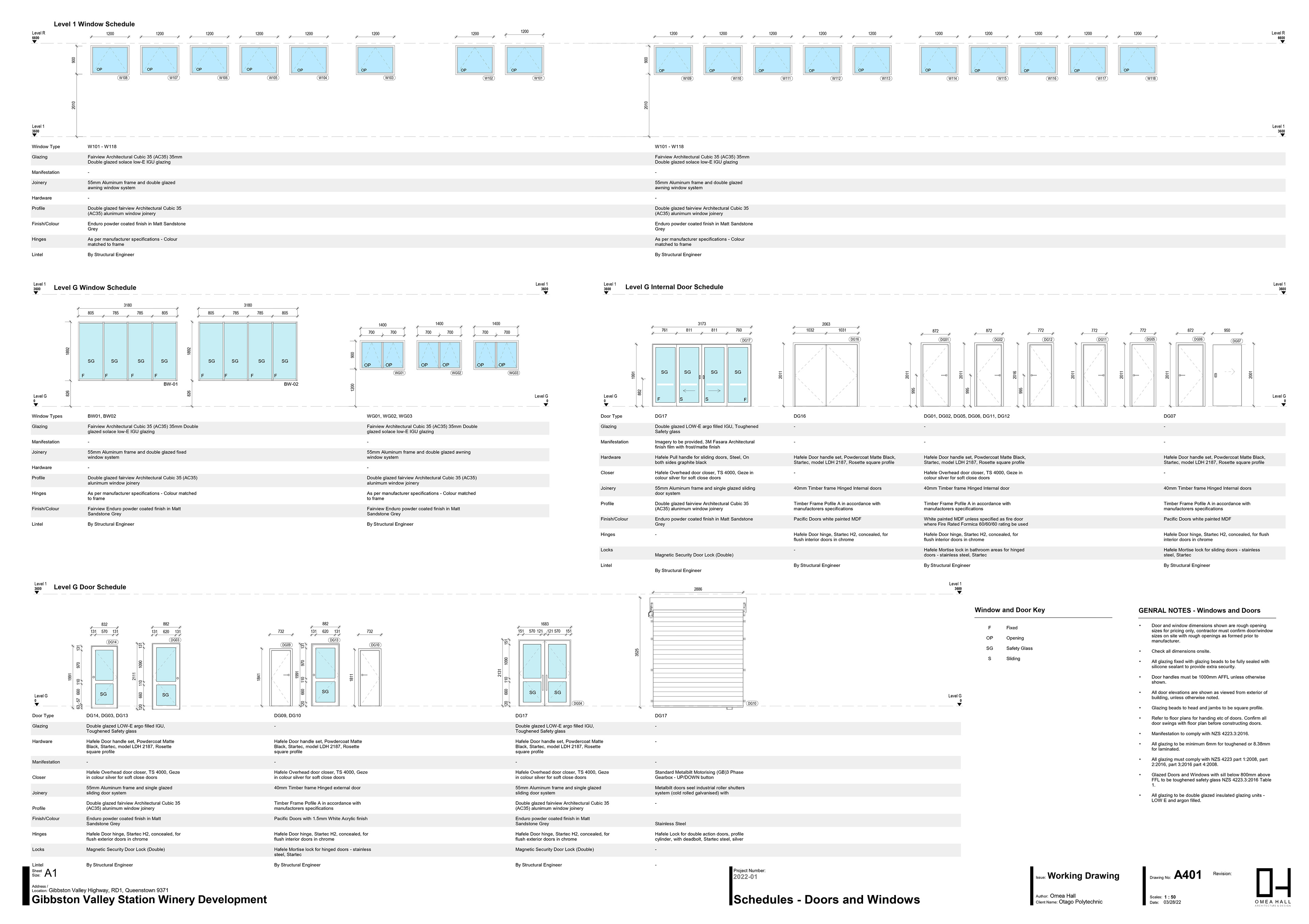

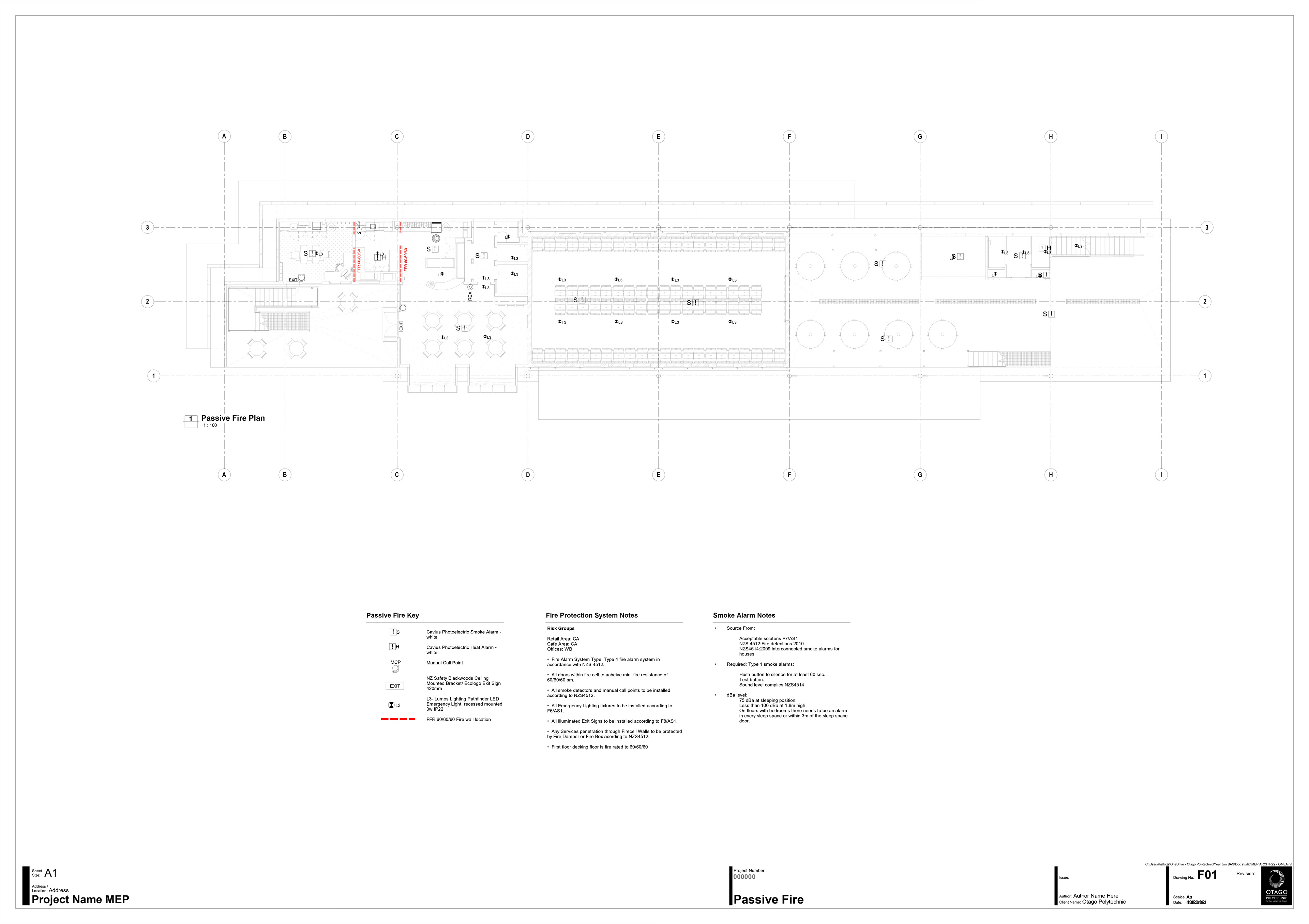

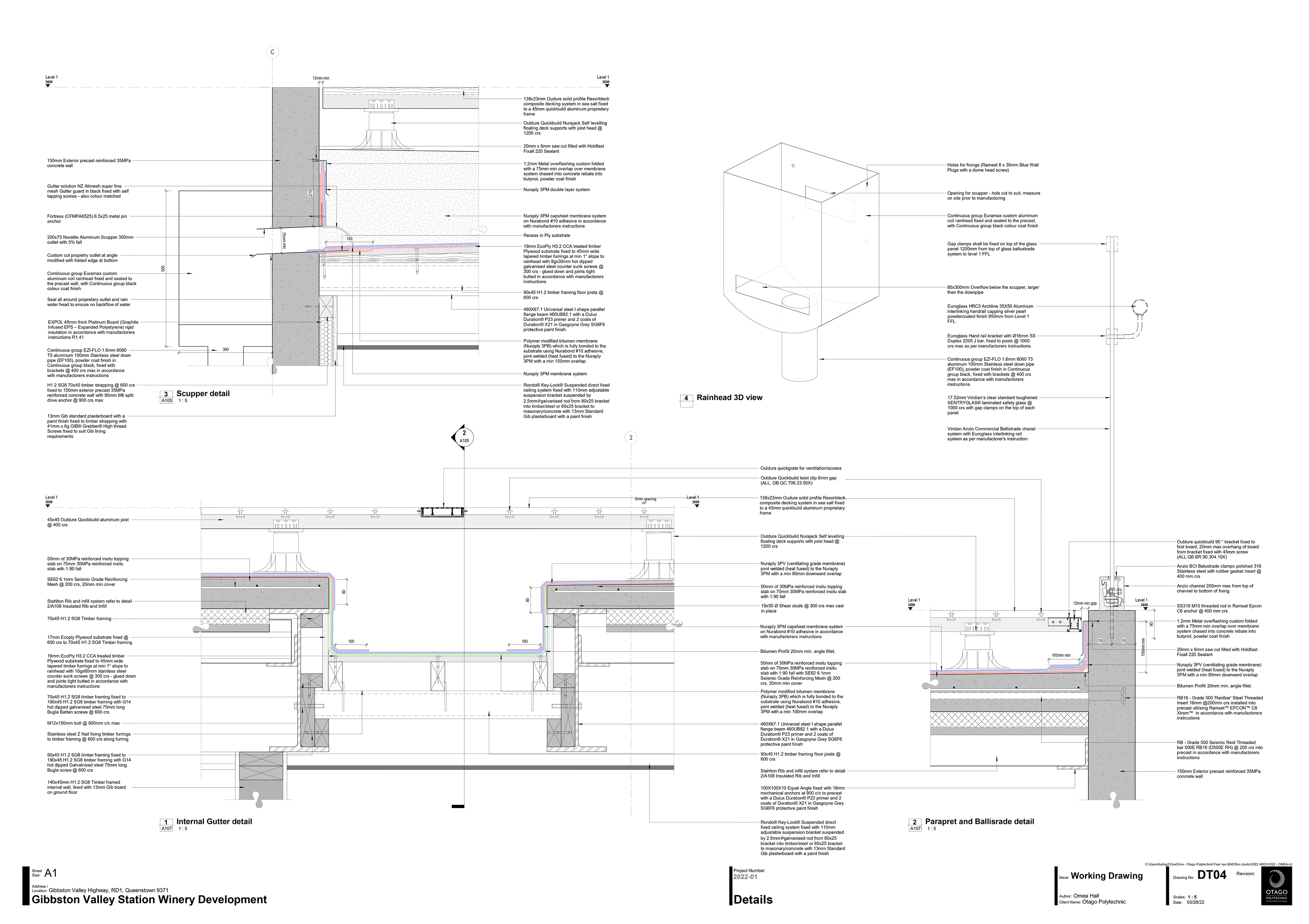

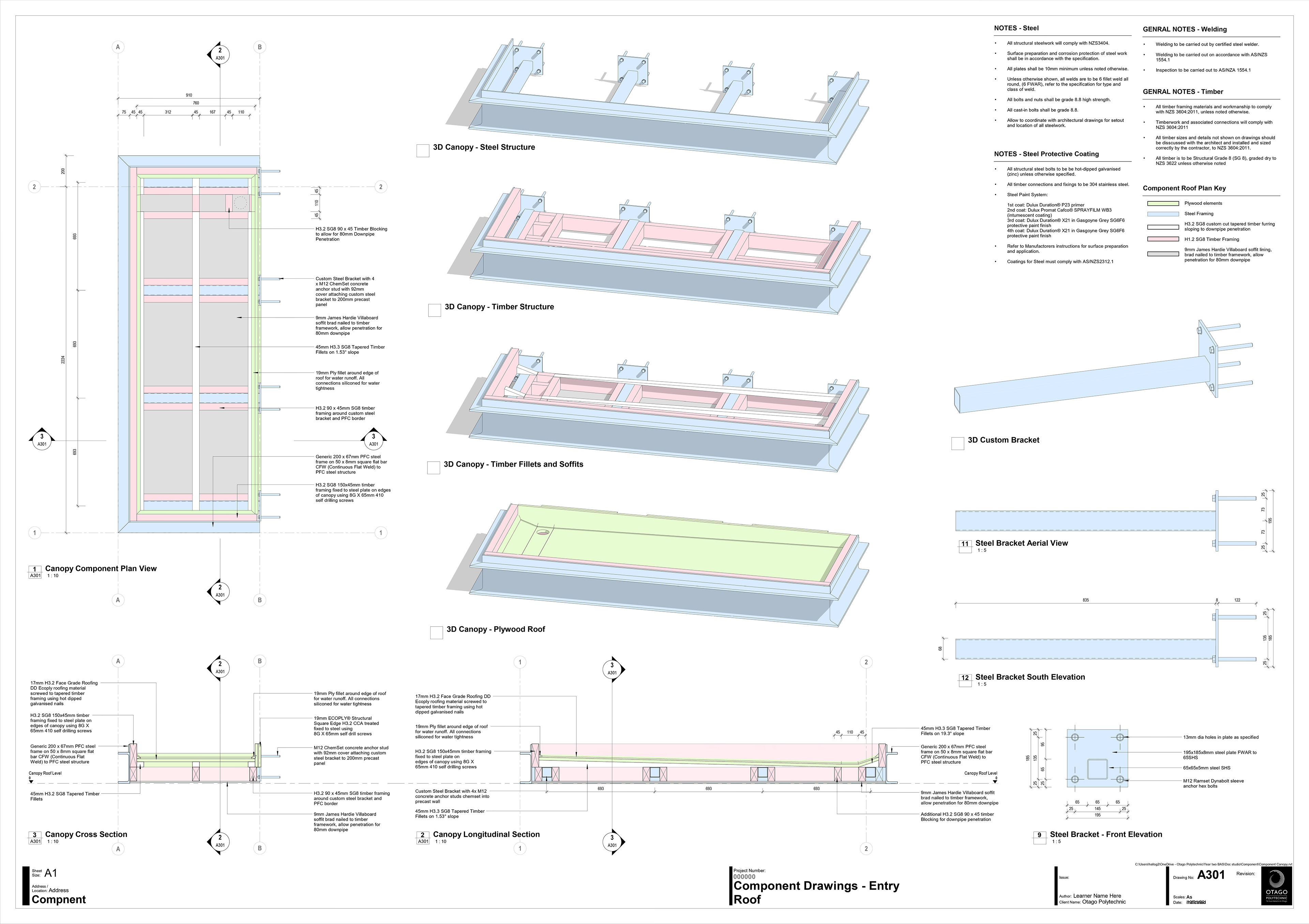

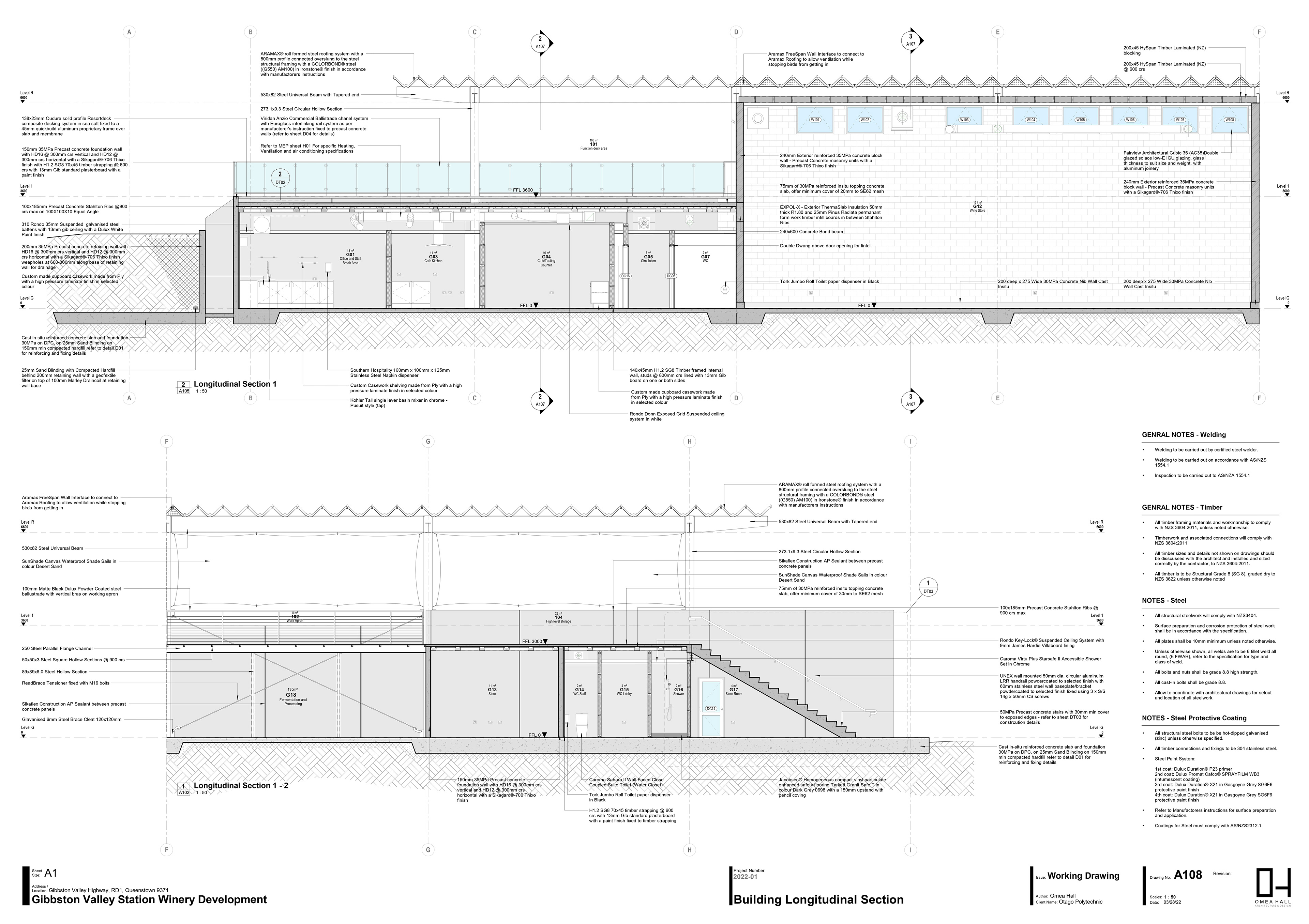

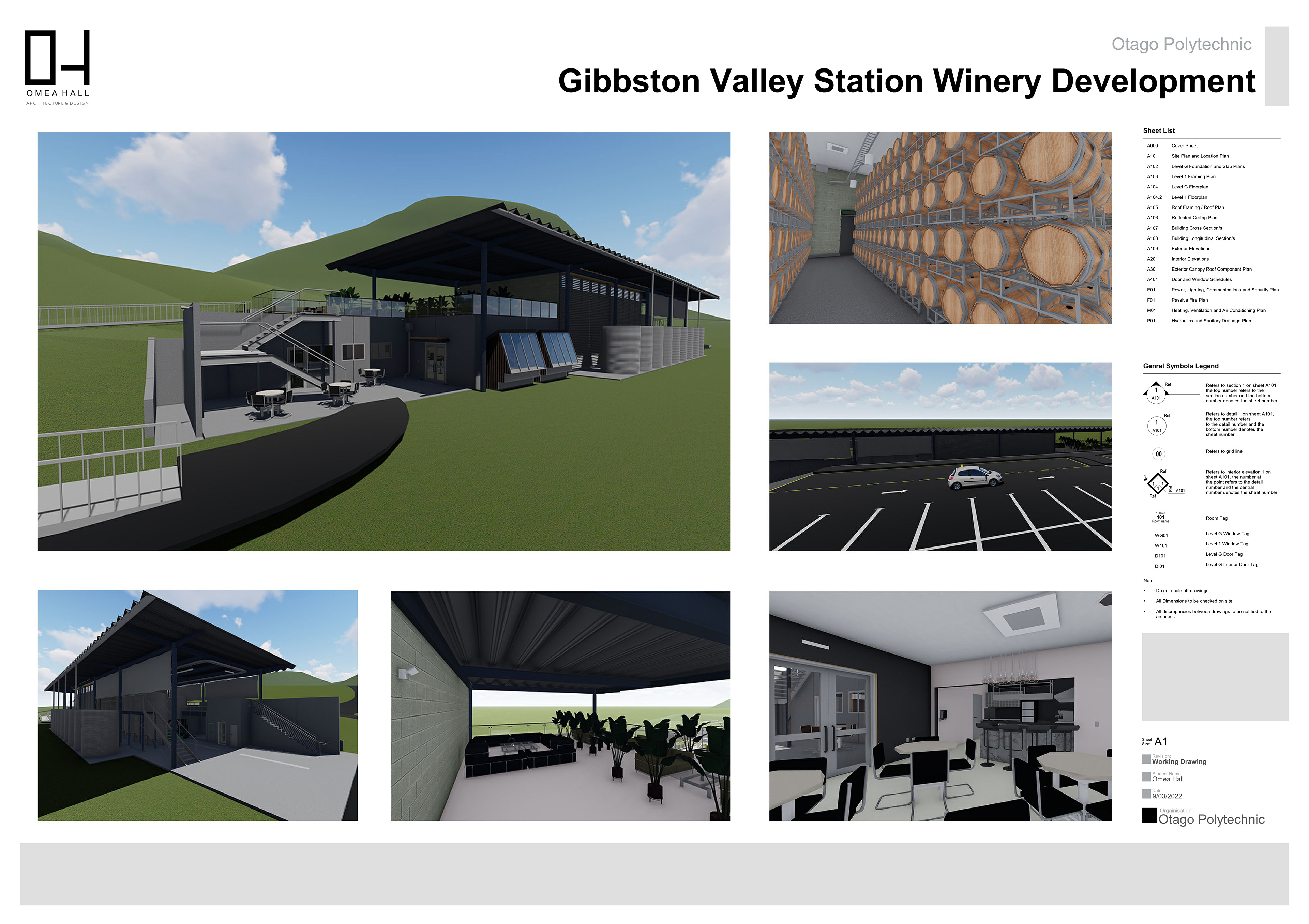

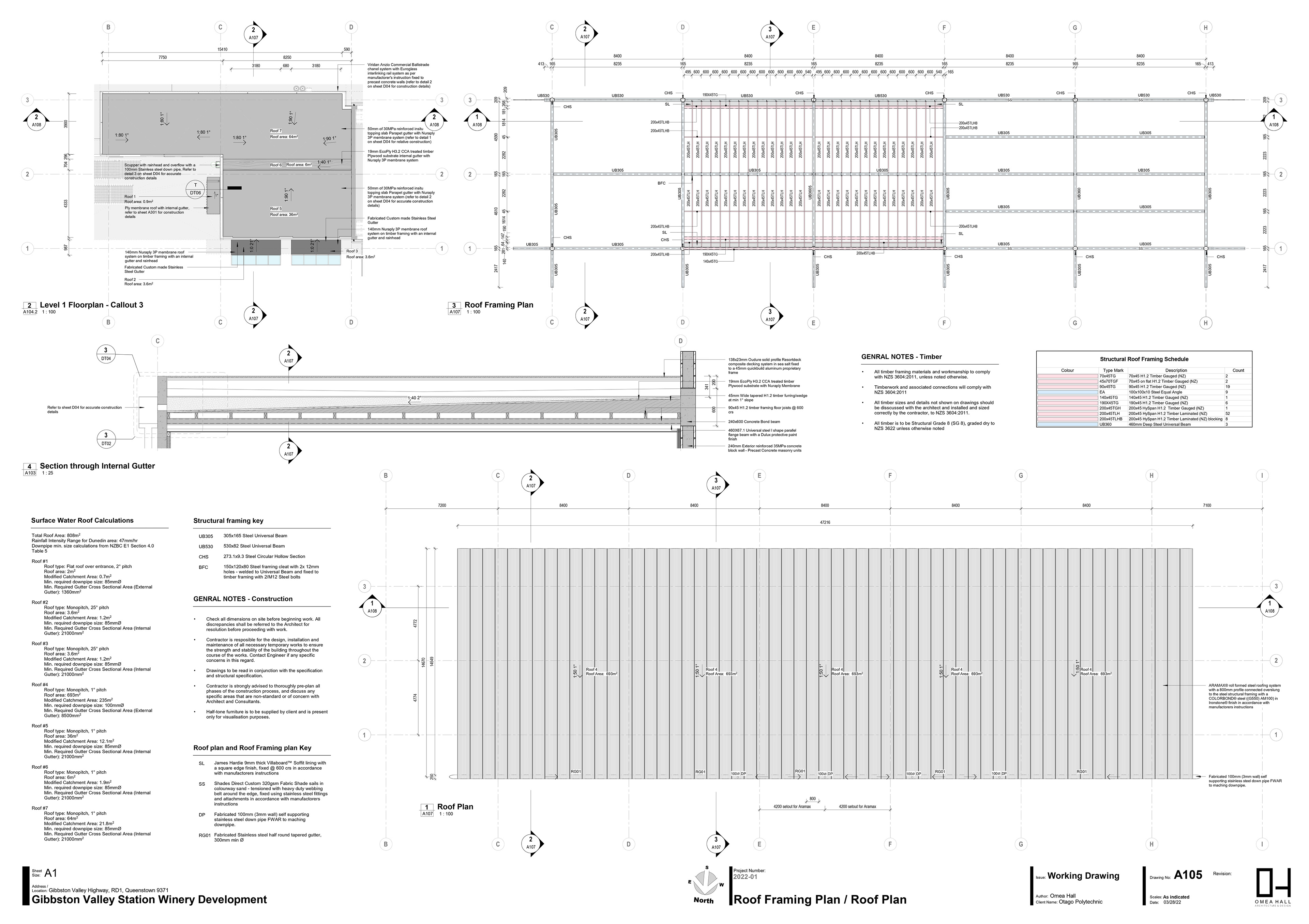

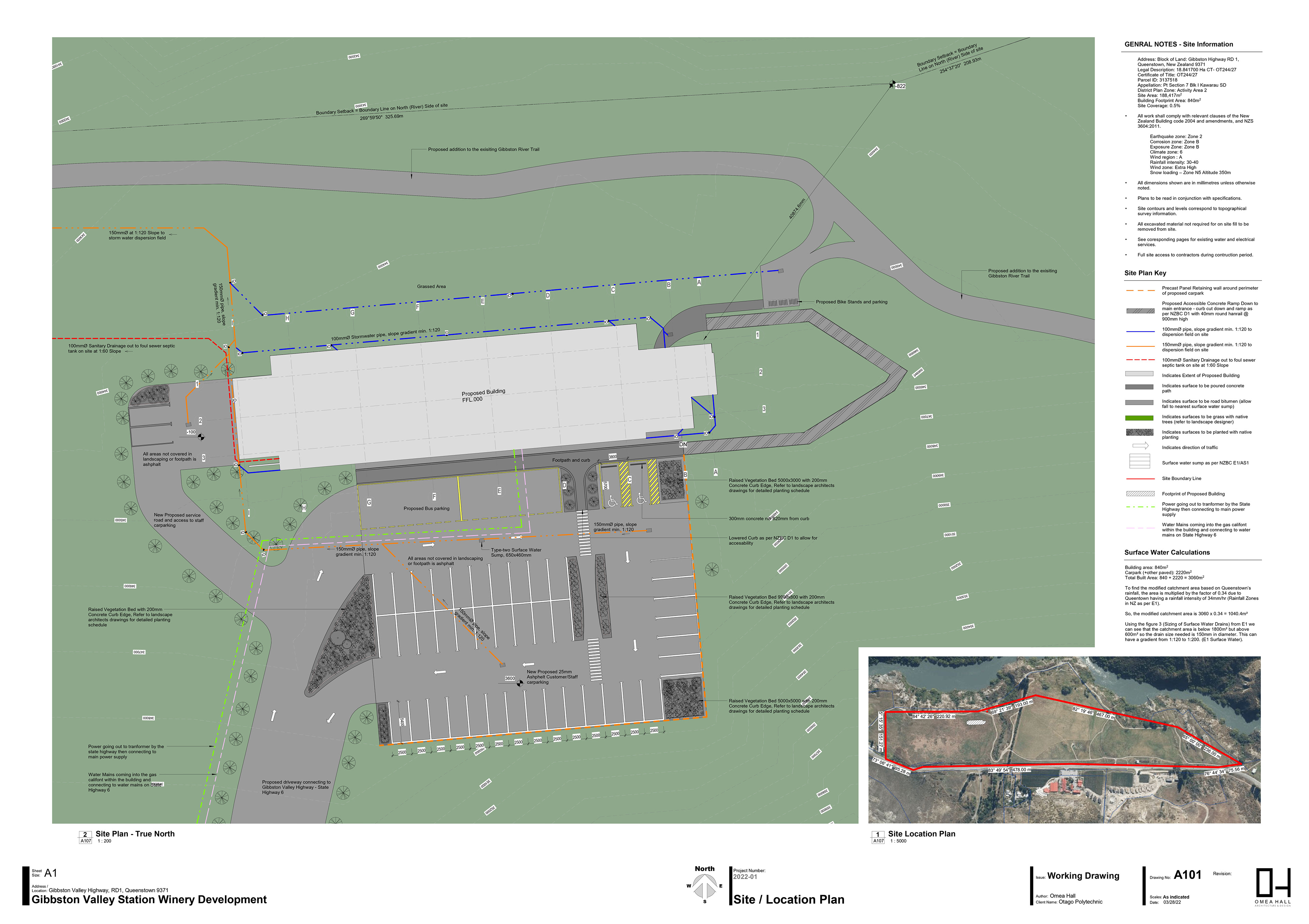

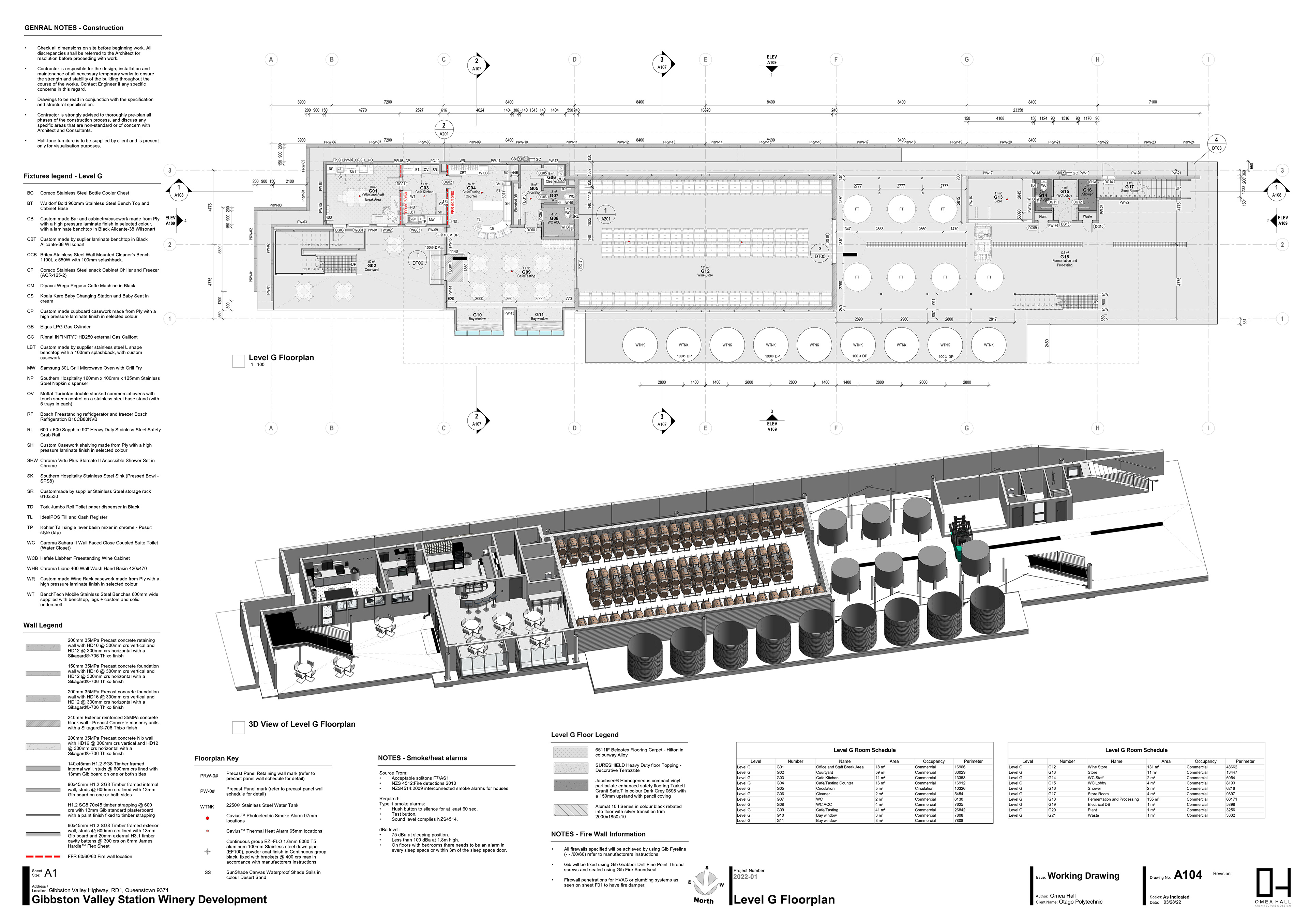

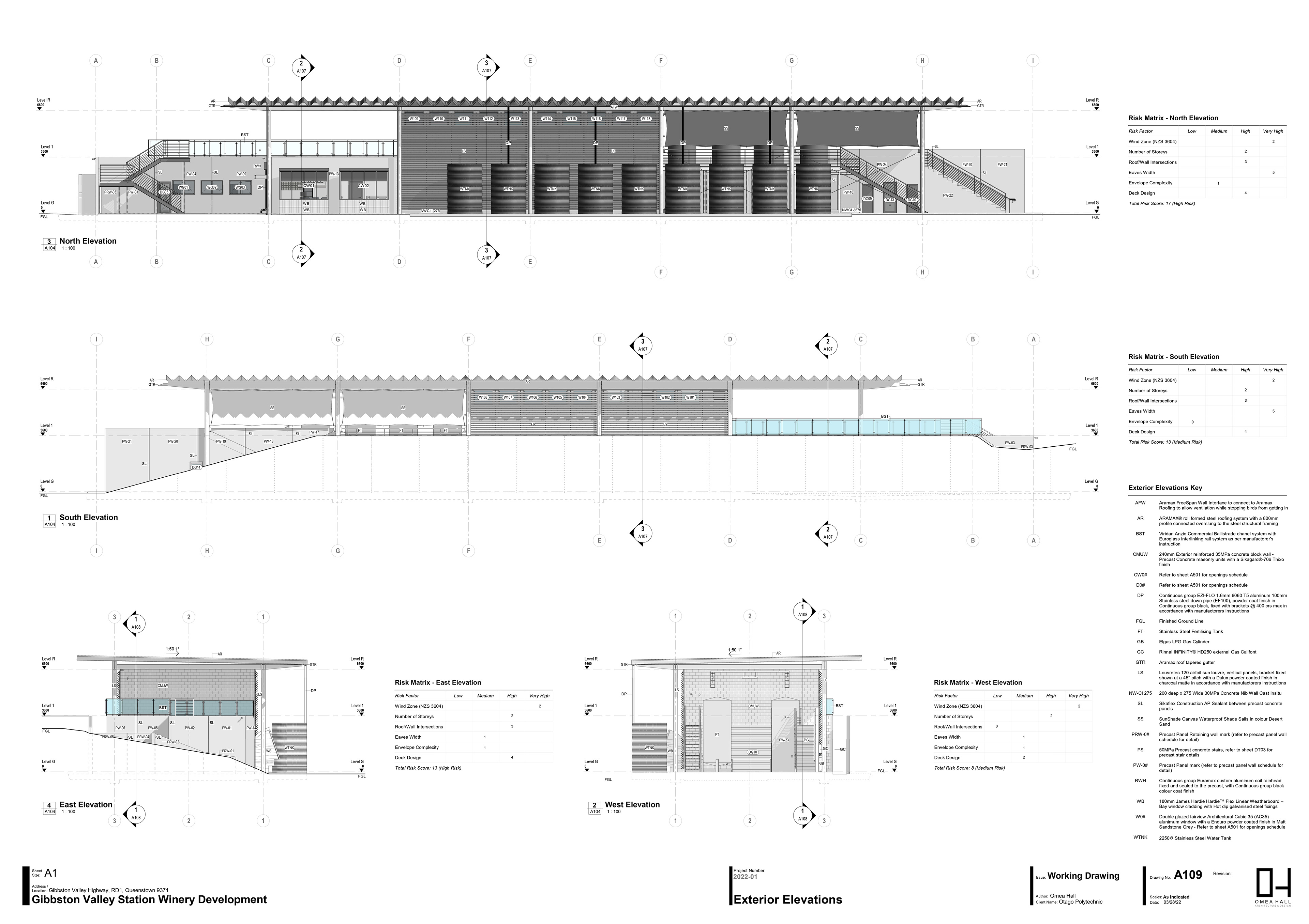

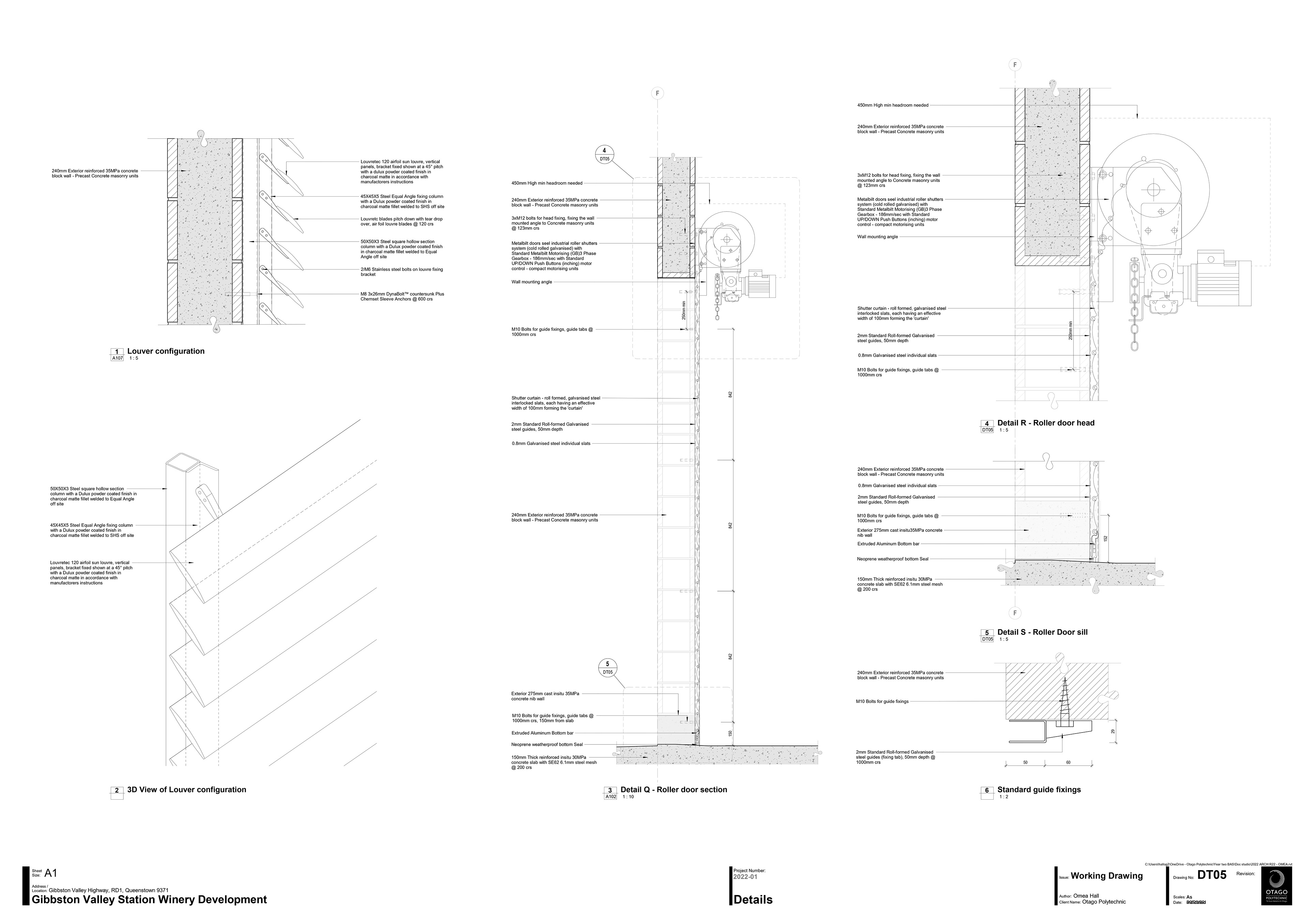

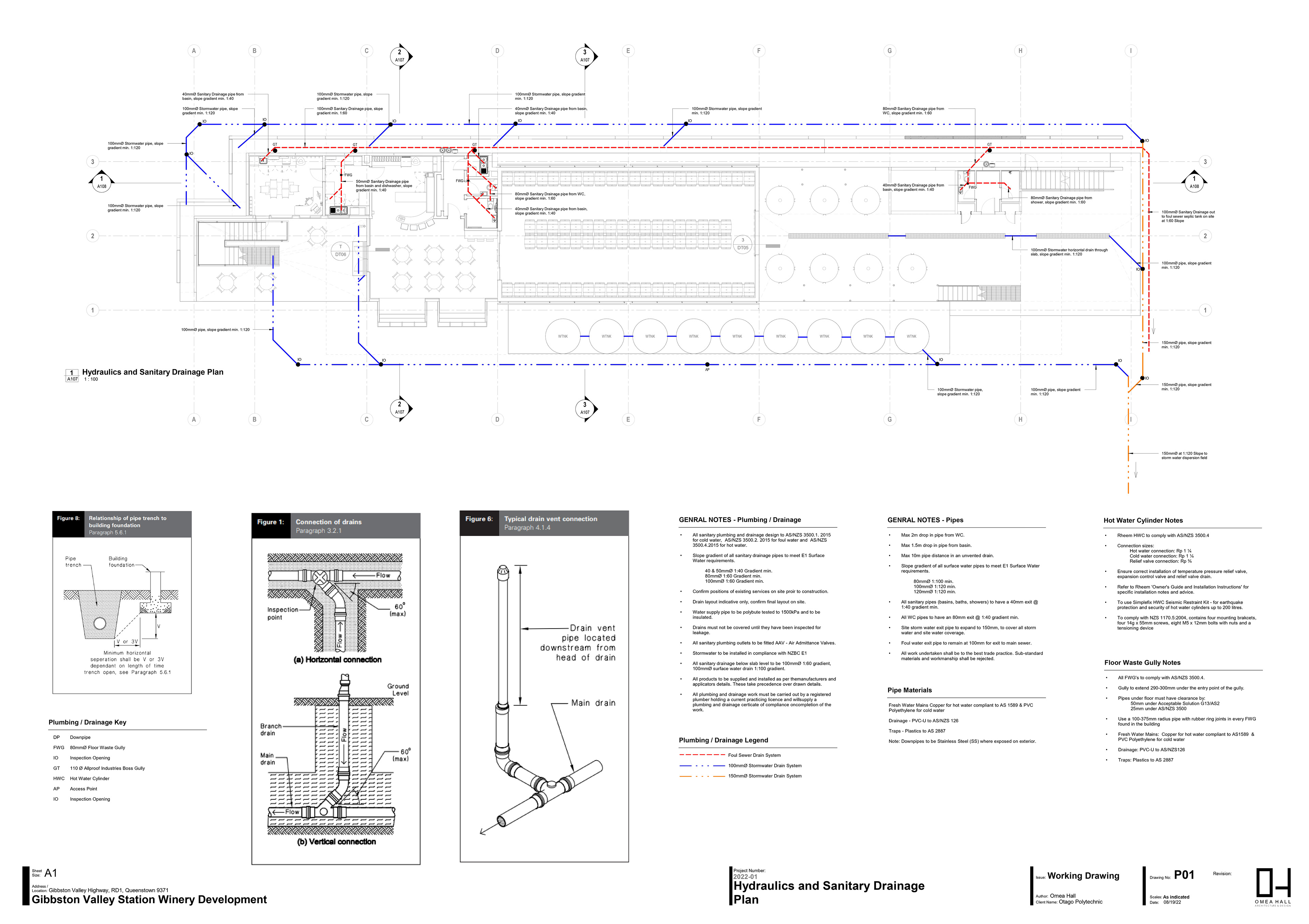

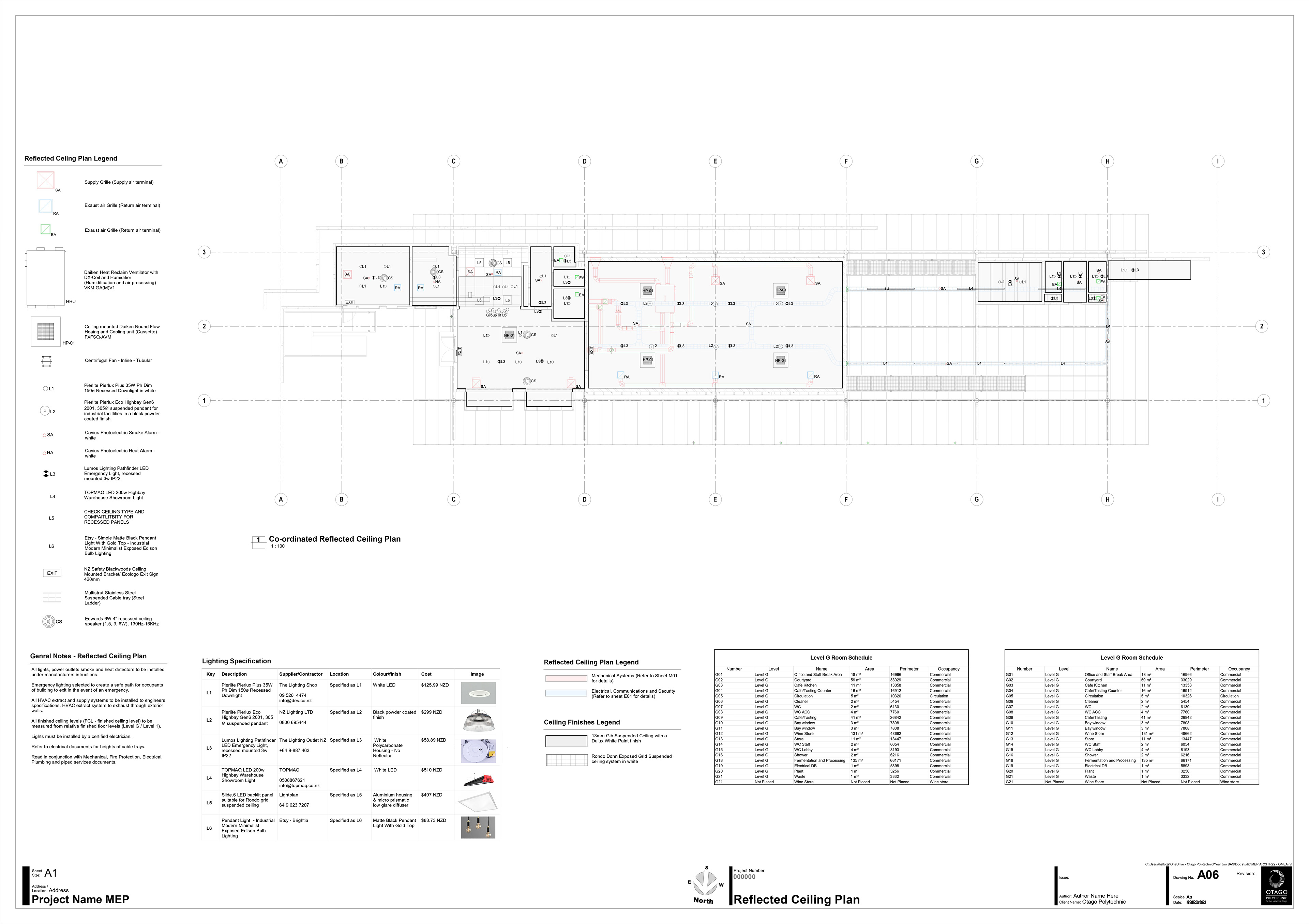

This architectural drawing set is based on an existing building that we 3D modelled, documented, and detailed using Revit as part of a second-year Architectural Technologies paper completed in 2022. In addition to producing comprehensive documentation, we also designed and integrated building service systems into the project
